Explosion-Proof Linear Electric Actuators / LE Series
LE-1000
- Thrust：1000 kgf/2205 lbf
- Weight：31 kg/69 lb
- Motor Power：35 W
- Mounting Flange: ISO 5210 F10
- Max. Stroke：100 mm/ 4 inch

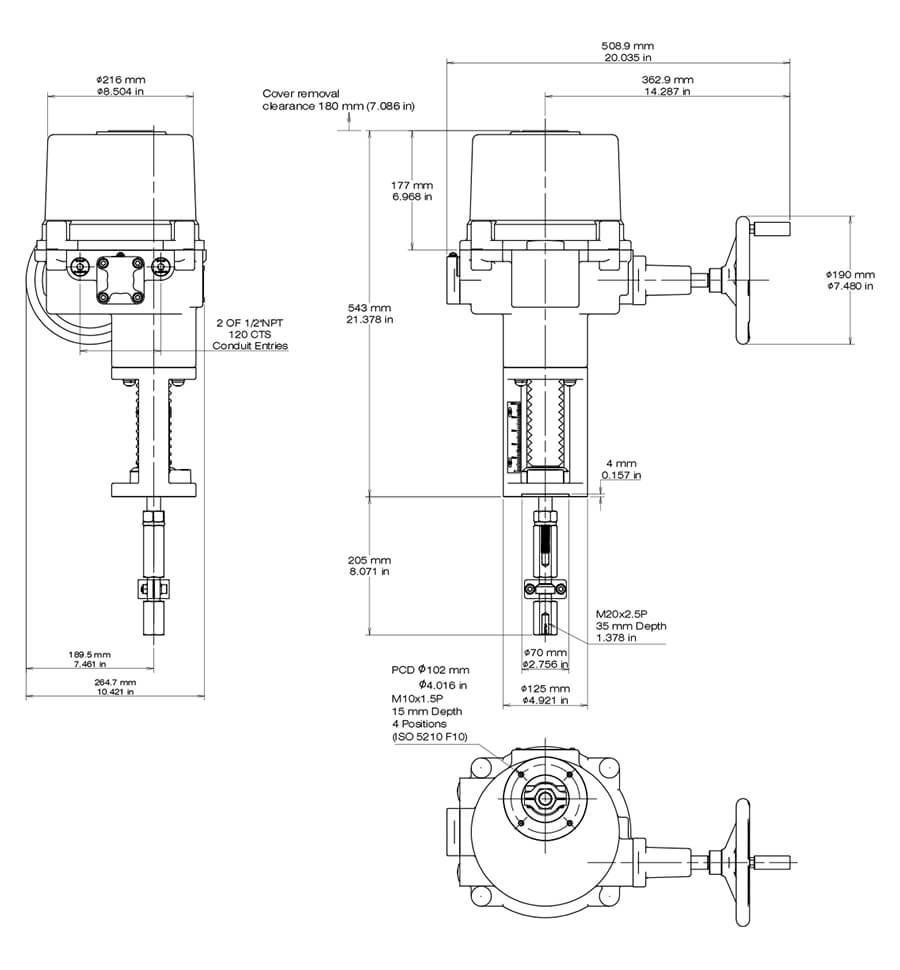

| Item | LE-1000 |
|---|---|
| Thrust (kgf) | 1000 |
| Thrust (lbf) | 2205 |
| Thrust (kN) | 9.805 |
| Flange (ISO 5210) | F10 |
| Max. Stroke (mm) | 100 |
| Max. Stroke (inch) | 4 |
| Run Speed (mm/sec) | 0.46 |
| Run Speed (inch/sec) | 0.018 |
| Manual Override | Hand-Wheel |
| Weight (kg) | 31.5 |
| Weight (lb) | 69.5 |
- Enclosure conforms to IP68 (7m / 72 hrs) with explosion protection.
- Self-locking drive system.
- DC motor equipped.
- Manual operation can be applied in case of power outage.
- Built-in thermal protection prevents motor burnout.
Control：
- Standard：Modulating
- Options：On/Off-Floating
Conduit entrance :
- Standard: 1/2 ” NPT
- Optional: 3/4” NPT、M20、M25
| Marking | Ambient Temperature |
|---|---|
| Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
| Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
In accordance with IEC 60079-0, IEC 60079-1, IEC60079-31
CNEx China Hazardous Areas Certification| Marking | Ambient Temperature |
|---|---|
| Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
| Ex tb IIIC T130 °C Db | -30°C ~ +70°C (-22°F ~ +158°F) |
In accordance with IEC 60079-0, IEC 60079-1, IEC60079-31
ATEX Hazardous Areas Certification for European Union| Directive | Marking | Ambient Temperature |
|---|---|---|
| ATEX II 2GD | Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
| ATEX II 2GD | Ex tb IIIC T130°C Db | -30°C ~ +70°C (-22°F ~ +158°F) |
In accordance with IEC 60079-0, IEC 60079-1, IEC60079-31
IECEx Hazardous Areas Certifcation for International Market| Marking | Ambient Temperature |
|---|---|
| Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
| Ex tb IIIC T130 °C Db | -30°C ~ +70°C (-22°F ~ +158°F) |
In accordance with IEC 60079-0, IEC 60079-1, IEC60079-31
CSA Hazardous Locations Certification for North America Zone System| Code | Class | Permitted Zone | Type of Protection | Group | Temperature Class | Ambient Temperature |
|---|---|---|---|---|---|---|
| AEx / Ex | I | 1 | db | IIB, IIA | T4 | -30°C~+70°C(-22°F~+158°F) |
| AEx / Ex | II | 21 | tb | IIIC,IIIB,IIIA | T130°C | -30°C~+70°C(-22°F~+158°F) |
In accordance with CAN / CSA-C22.2 No. 60079-0, CAN / CSA-C22.2 No. 60079-1, CAN / CSA-C22.2 No. 60079-31, UL 60079-0, UL 60079-1, UL 60079-31
UKCA Hazardous Areas Certification| Directive | Marking | Ambient Temperature |
|---|---|---|
| UKCA II 2GD | Ex db IIB T4 Gb | -30°C ~ +70°C (-22°F ~ +158°F) |
| UKCA II 2GD | Ex tb IIIC T130°C Db | -30°C ~ +70°C (-22°F ~ +158°F) |
In accordance with EN 60079-0, EN 60079-1, EN 60079-31
- CSA - Zone system
- TS
- IECEx
- ATEX
- CNEX
- UKEX (UKCA Explosion-proof)
Space heater
A space heater can increase the internal temperature and keep dry inside actuator to avoid the freezing lubricant and moisture causing actuator failure under low temperature or high humidity. Heater is not recommended if the ambient temperature is above 35 degrees℃ (95 degrees℉). However, when the temperature varies much from day to night or between summer and winter, heater and thermostat (25±5 degrees℃ / 77±41 degrees℉) are recommended.
Heater thermostat
The option can switch the heater off when the temperature inside the actuator is over 25°C / 77°F.
Floating controller
An external switch is applied to provide either two-position or floating control to the actuator.
1. Thrust (kg)
- 250, 500, 1000, 2000
2.Voltage
- D24– 24 V DC; 24 – 24 V AC
- 110 – 110 V AC; 120 – 120 V AC
- 220 – 220 V AC; 240 – 240 V AC
3.Control Method
- M – Modulating
- F – ON/OFF-Floating
