Quarter Turn Electric Actuators / OM Series
BM-2
- Torque: 120 Nm/1065 in-lb
- Motor Power: 40 W
- Manual Override: N/A
- Mounting Flange: ISO 5211 F07
- Speed: 9 sec/90° (110VAC@60 Hz, 30% duty cycle)
- Weight: 5.5 kg/12.1 lb
| Item | BM-2 |
|---|---|
| Torque (Nm) | 120 |
| Torque (in-lb) | 1065 |

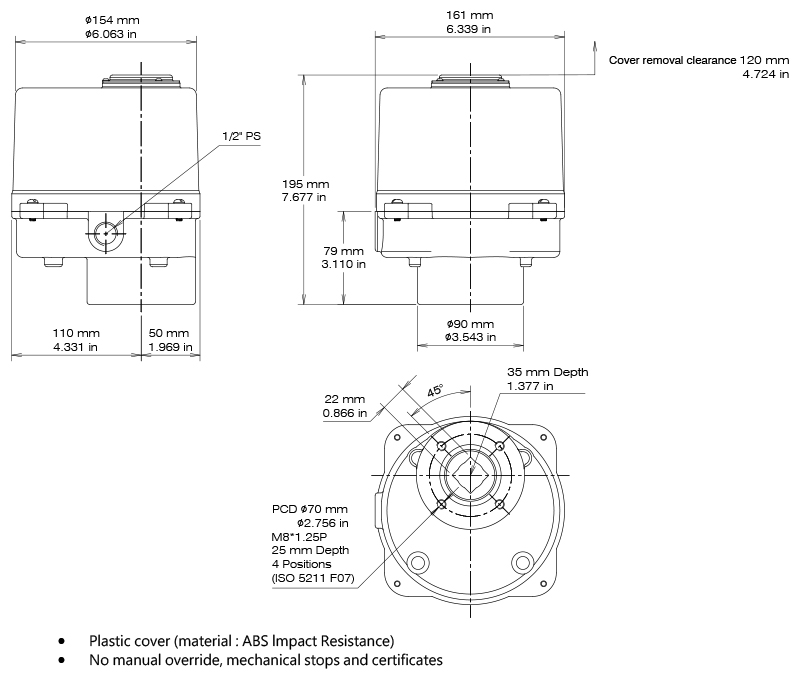

| Size of Output Drive (mm) | ◼22 |
| Depth of Output Drive (mm) | 35 |
| Flange (ISO 5211) | F07 |
| Run Time (sec / 90°) | 9 |
| Manual Override | N/A |
| Weight (kg) | 5.5 |
| Weight (lb) | 12.1 |
Enclosure
- ABS plastics
- IP65
Motor
- Insulation class F
- Built-in thermal protector prevents the motor from overheating and burnout.
Thermal trip temperature:
AC motor: 125±5℃ (257±9℉)
Duty Cycle
- Standard: 30% duty cycle
- The extended duty cycle is not applicable.
Position Indication
- A mechanical position indicator is located on the top of the actuator.
Lubrication
- The gears are lubricated for life.
Conduit Entry
- Standard: 1/2” PS
- Optional: 1/2” PF, 1/2” NPT, M20
Voltages
- 110-120V AC
- 220-240V AC-1 Phase
- 220V AC-3 Phase
- 380V AC-3 Phase
- 440V AC-3 Phase
Travel Angle
- Standard: 0° to 90°
Operating Condition
- Ambient temperature: -30℃ to +65℃ (-22℉ to +149℉)
- Relative humidity: 30% to 95%
- N/A
Anti-condensation heater
A space heater can increase the internal temperature and keep dry inside actuator to avoid the freezing lubricant and moisture causing actuator failure under low temperature or high humidity. Heater is not recommended if the ambient temperature is higher than 35℃ (95℉). However, when the temperature varies much from day to night or between summer and winter, heater and thermostat are recommended.
Heater thermostat
The option can switch the heater off when the temperature inside the actuator is over 25±5℃ (77±9℉).
Auxiliary limit switches
The standard model equips with the 1st & 2nd switches for fully-open and fully-closed. The option consists of the 3rd & 4th auxiliary switches which provide dry contacts for fully-open and fully-closed.
